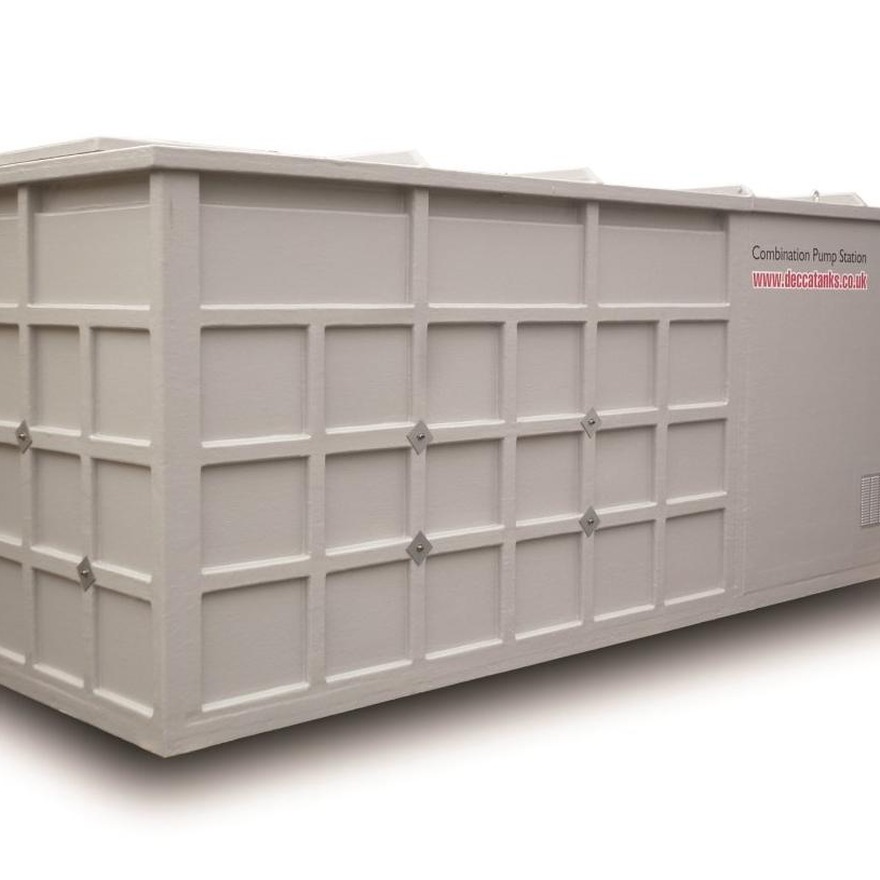

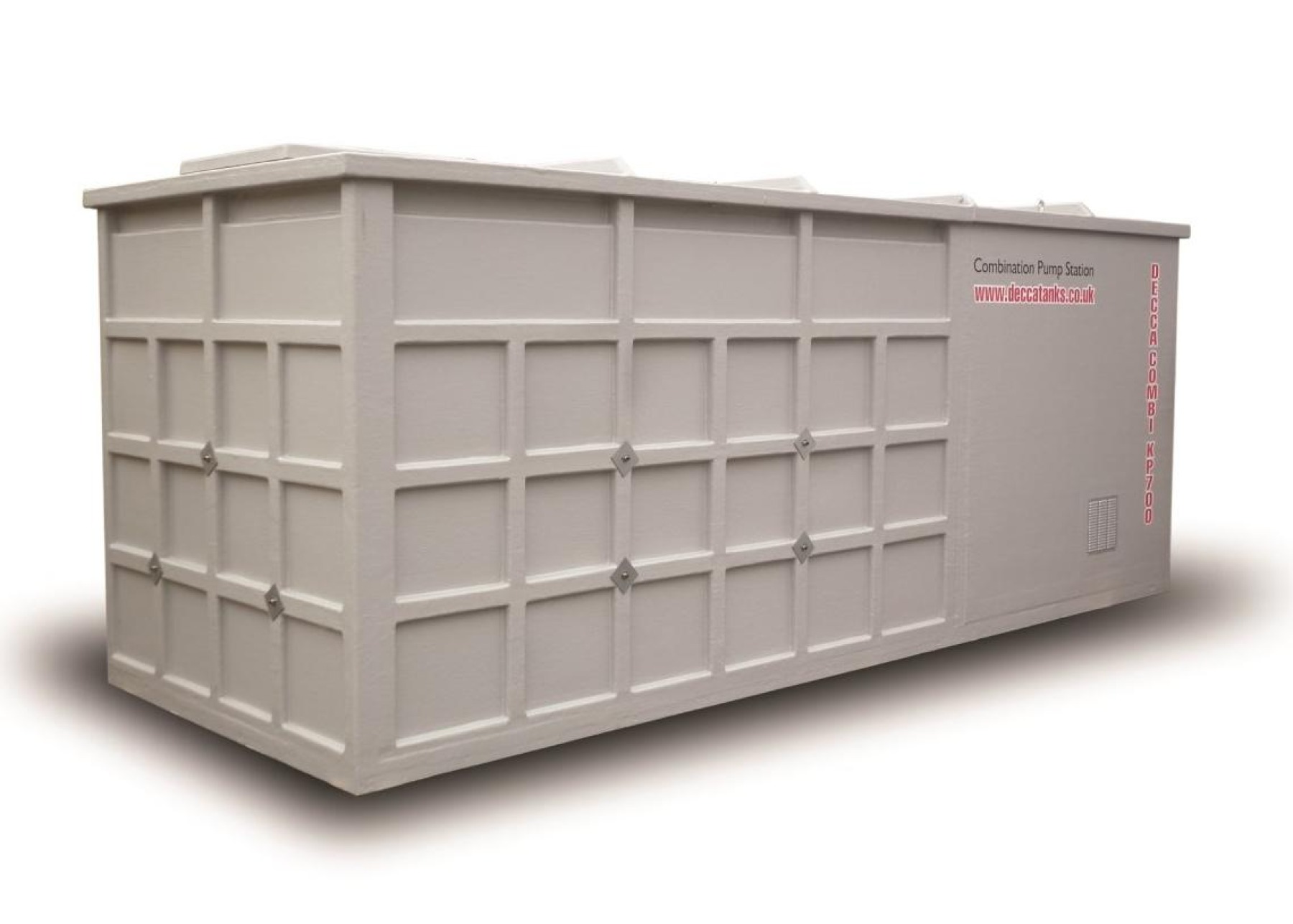

SECTIONAL TANKS
Our sectional tanks are the ideal choice for larger-scale water storage requirements.
These modular tanks are assembled on-site, making them perfect for spaces with restricted access.
The can be built either rectangular, square or to any special shape or size such as an ‘L’ shaped tank to suit conditions, and with internal partitions if required.
- Capacity Range: From 1,000 litres to several million litres.
- Materials: High-quality GRP (Glass Reinforced Plastic) panels for excellent durability and corrosion resistance.
- Customizable Configurations: Tailored to fit irregular spaces, with flexible dimensions.
- Ease of Maintenance: Designed for easy inspection and cleaning with internal access features.
- Applications: Ideal for commercial buildings, industrial facilities, and large residential complexes.

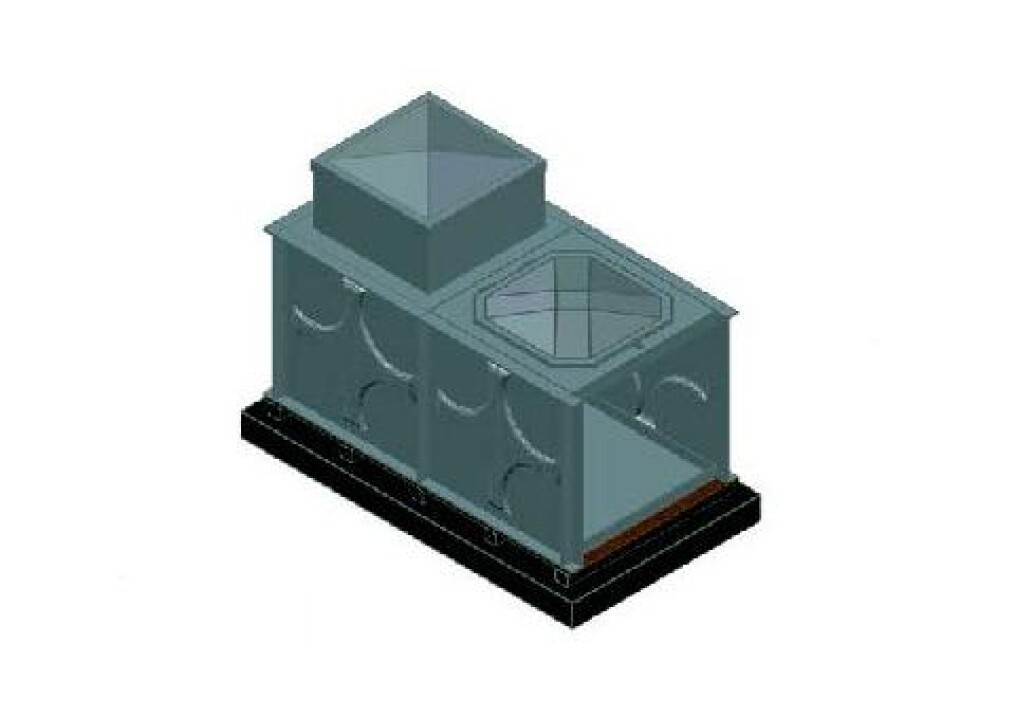

IFB - Internally Flanged Base Tank
IFB Tanks need adequate space to the sides of the installation to allow the fixing of the panels from outside the Tank but where a headroom restriction may be present.
The base panels are fastened together from inside the Tank itself with the Tank being installed on a flat and level base.
The final base support system must be flat and level and strong enough to support the weight of the Tank when full without any movement.

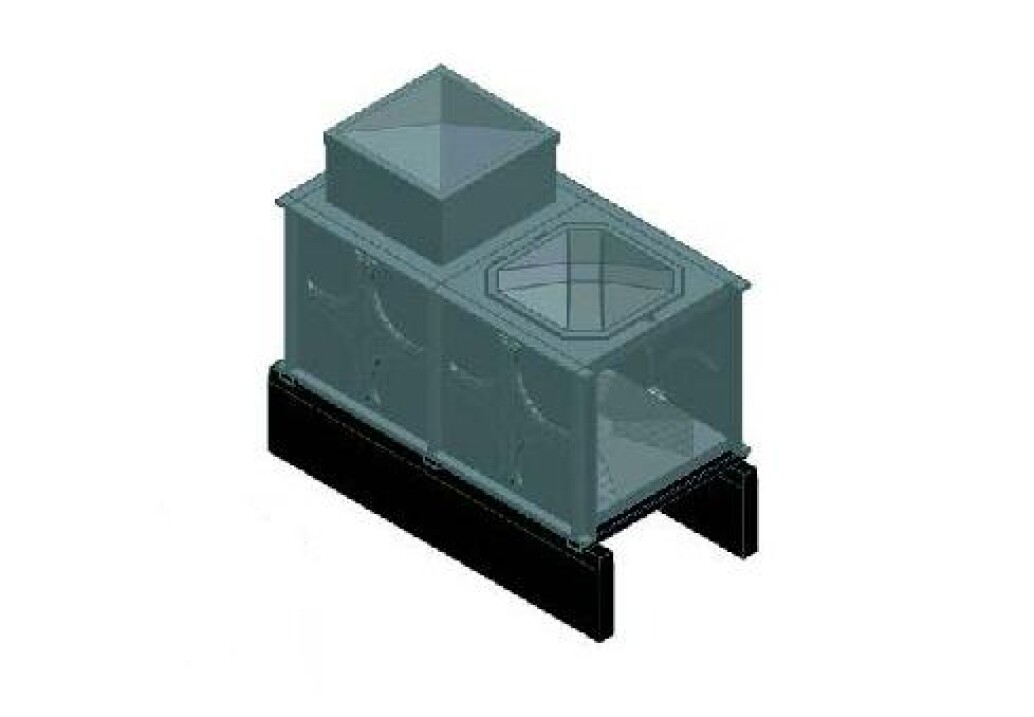

EFB - Externally Flanged Base Tank
EFB Tanks are to be installed where there is adequate access to the base and sides of the Tank to allow for the installation from outside the Tank. They can be fully drained quickly and without pumps.
A clearance space of a minimum of 500mm is required on all sides and there must be sufficient headroom above the Tank for opening the man way cover.
The base fixings are only accessible from the underside of the Tank, and must be raised on Concrete Piers/Goalposts or a combination one of these and RSJs.

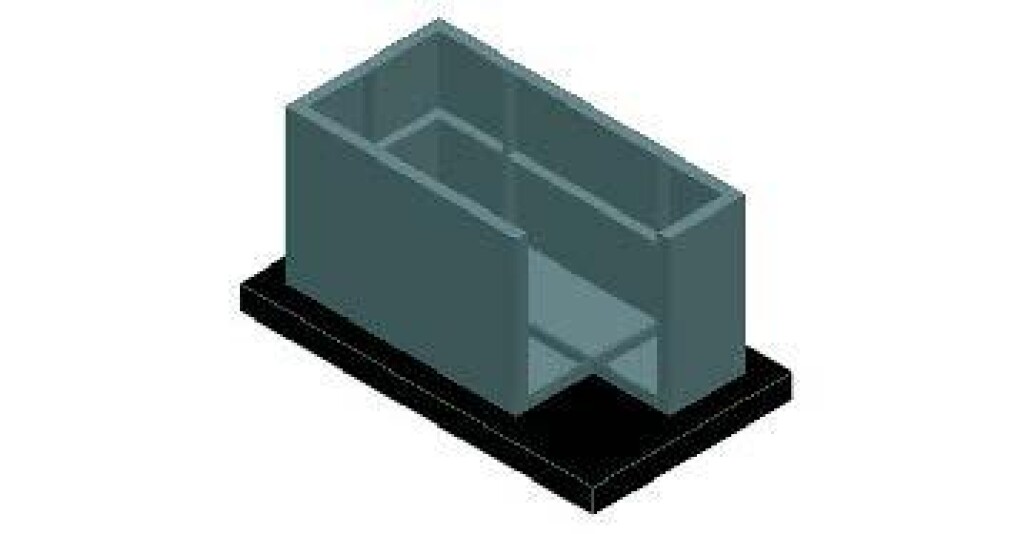

TIF - Totally Internally Flanged Tank
TIF Tanks have been designed to suit applications where maximum water capacity is required but where Tank room space is limited. TIF Tanks have the same benefits as any other sectional Tank but allow our engineers to install from within the Tank. As result, this allows for smaller spaced Tank rooms or enclosures.
TIF Tanks are installed with the entire base and side flanges positioned on the interior of the Tank, this enables a sectional Tank to be located and installed in very tight spaces as there is no need to access the fixings from outside of the Tank.
We require a minimum of 25mm clear space around the Tank.
The TIF Tank design is highly flexible allowing the panels to be supplied in any height increment required by the customer.

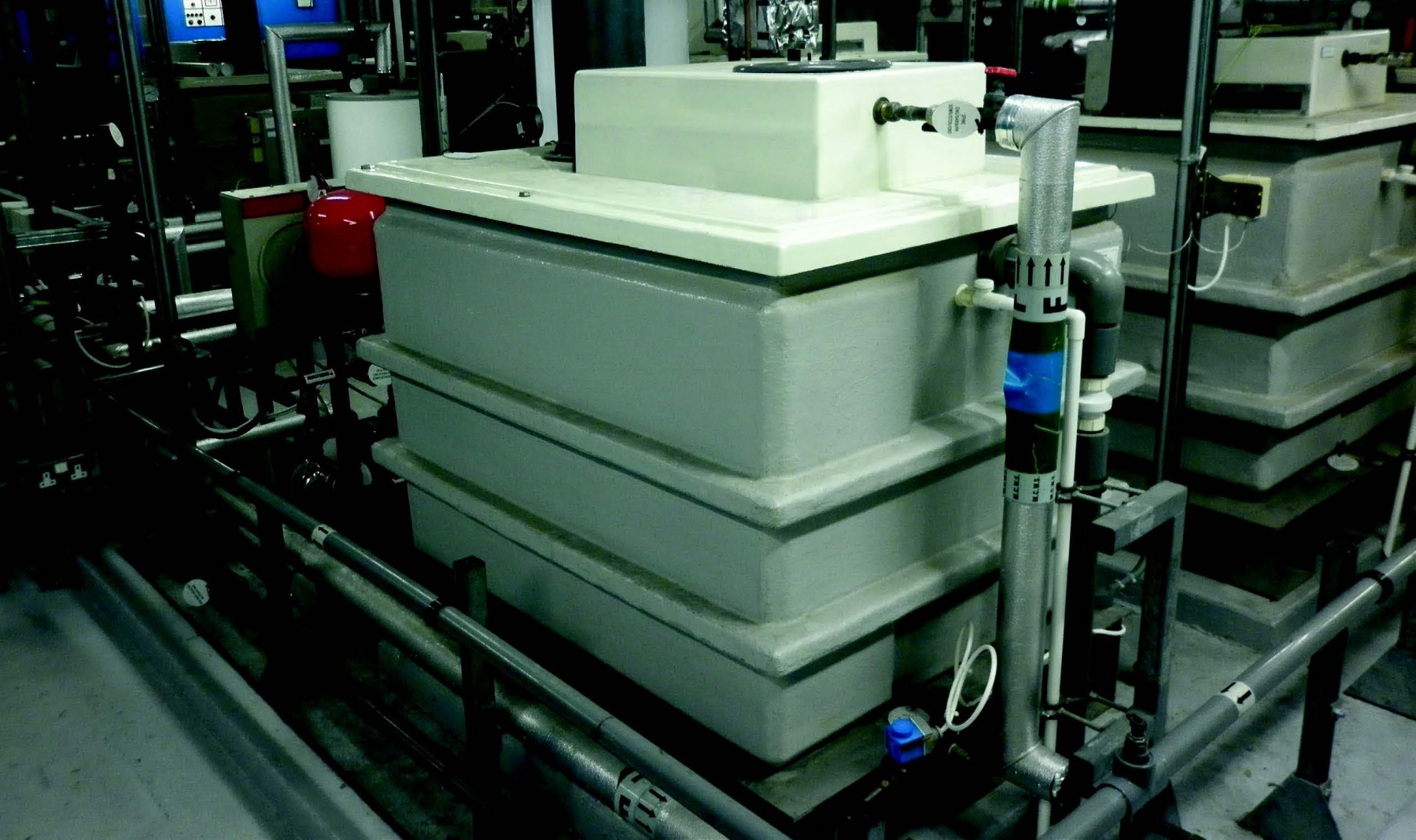

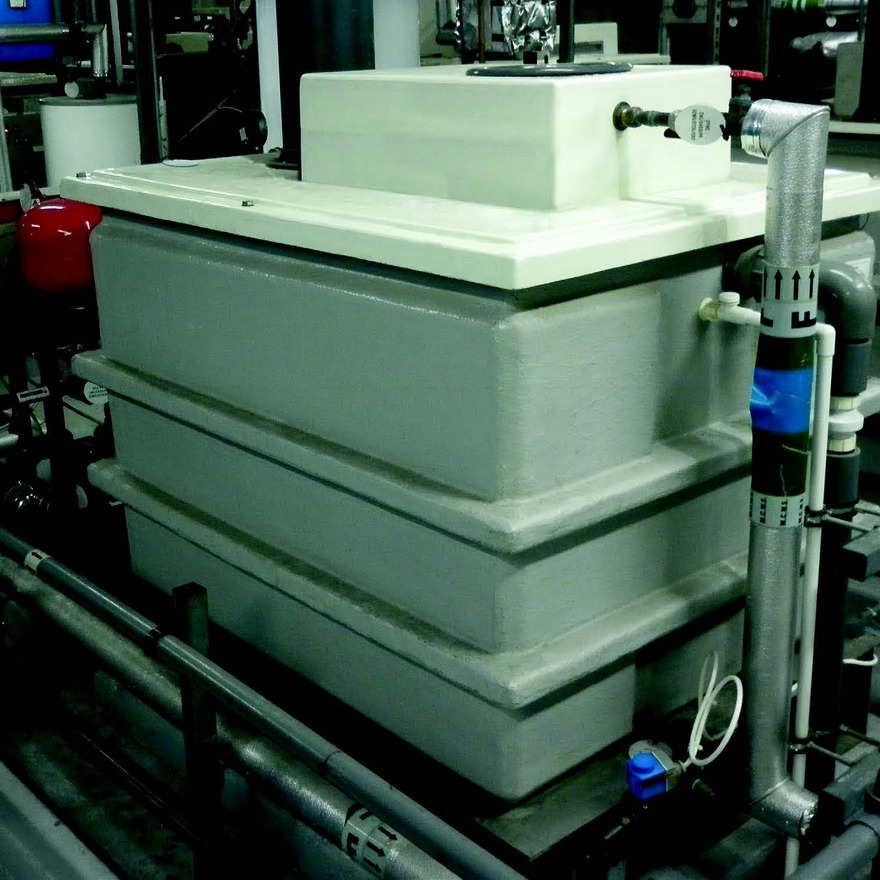

One Piece & Two Piece GRP Tanks
We offer a standard range of smaller One Piece Tanks that are also available in Two Piece format.
Our Two Piece Tank range is ideal for buildings with tight access restrictions.
All our Tanks are water tested prior to dispatch to ensure you receive a quality product that arrives ready to use.
Our One & Two Piece range comes with a unique advantage:
- Will Not Corrode
- Longer Life
- Normal Fittings Can Be Used
- Lightweight & Extremely Strong
- Hygienic, Environmentally Friendly
- Complies To Byelaw 30 Regulations For Potable Wholesome Water

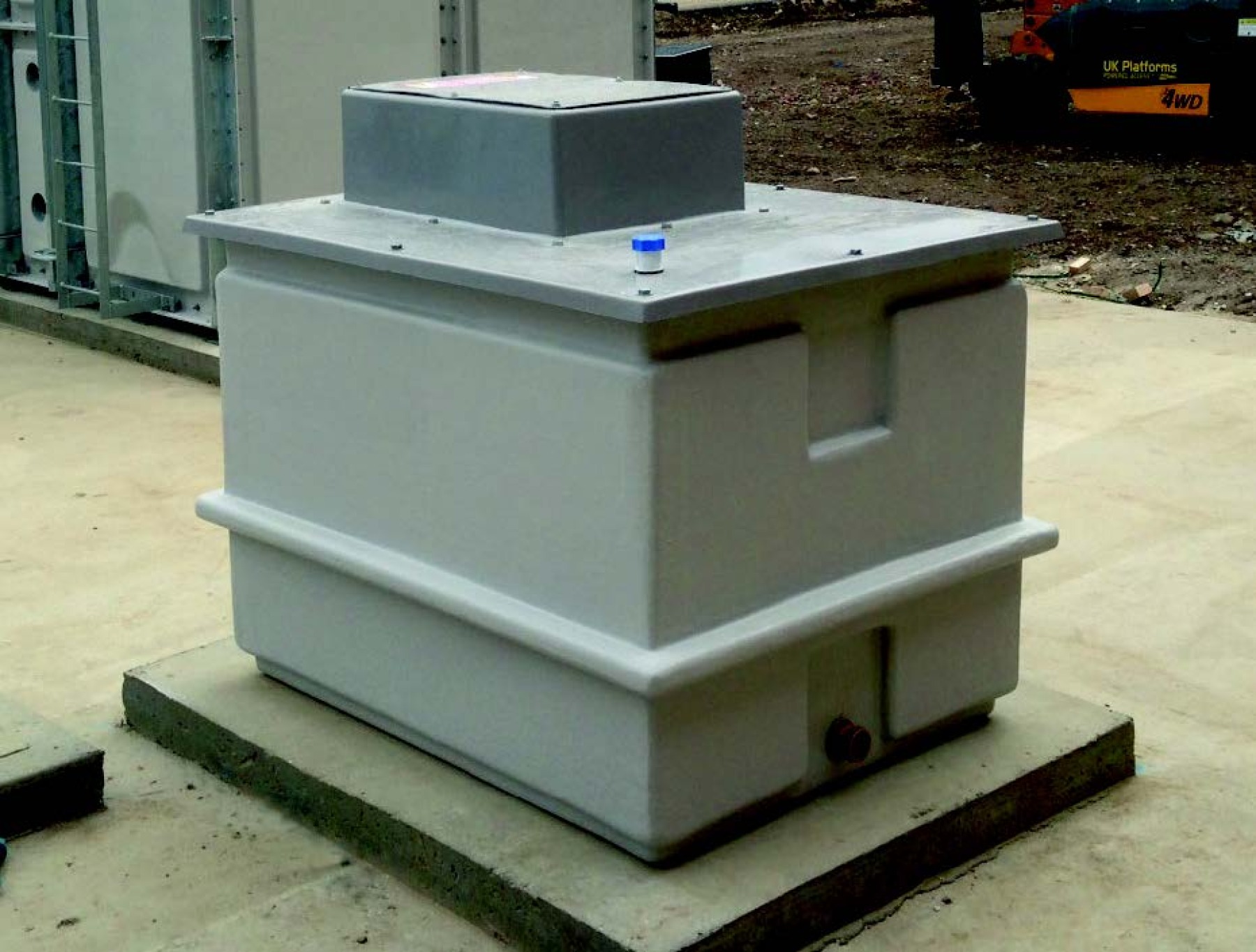

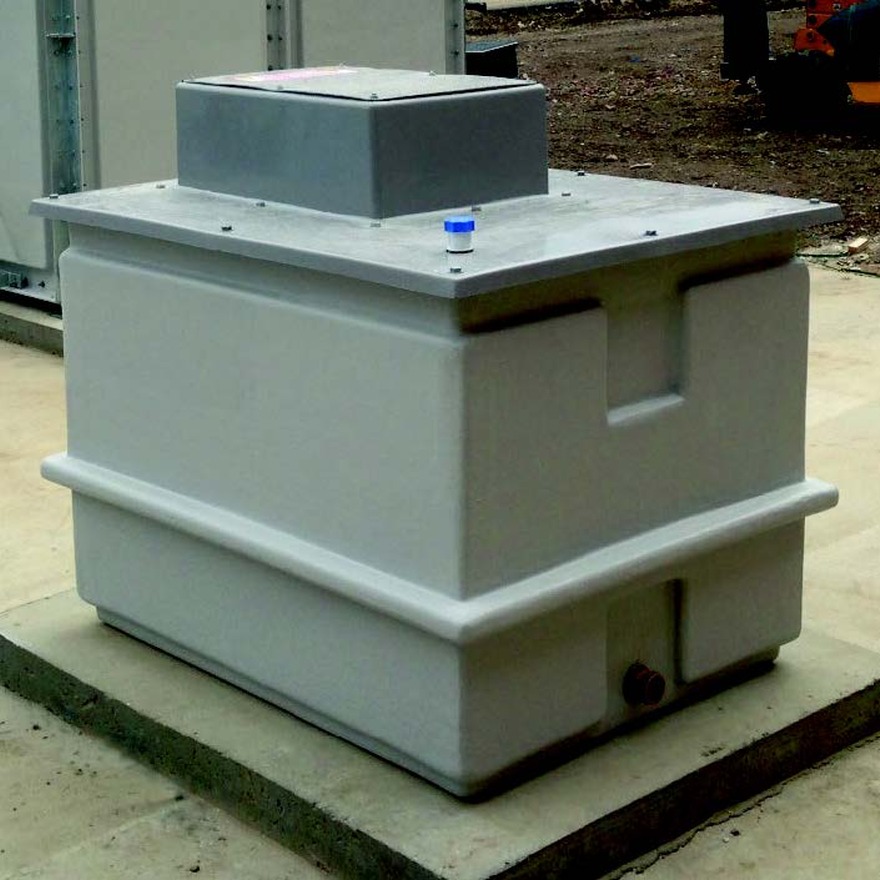

One-Piece Cold Water Storage Tanks
Compact and robust, our one-piece tanks are a simple, ready-to-install solution for smaller water storage needs. Key features include:
- Capacity Range: From 50 liters to 24,000 litres.
- Seamless Design: Minimizes the risk of leaks and ensures long-term reliability.
- Materials: GRP construction for strength and resistance to weathering and UV rays.
- Insulation Options: Available with insulation to maintain water temperature and comply with regulations.
- Applications: Ideal for small to medium residential properties, schools, and smaller commercial sites.

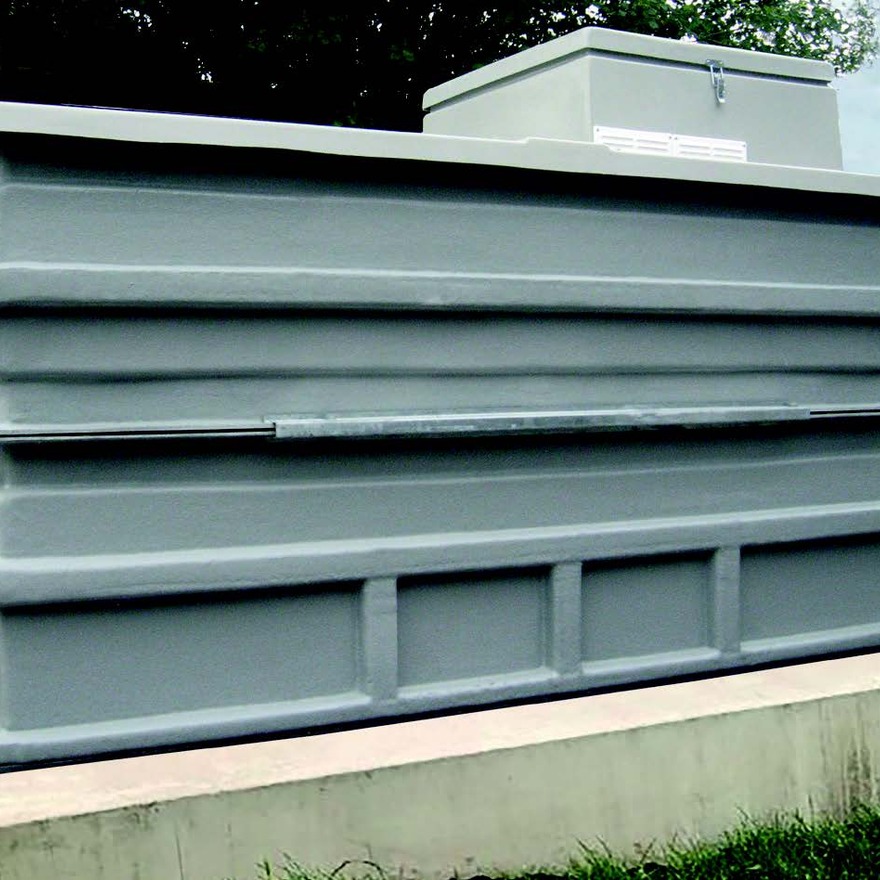

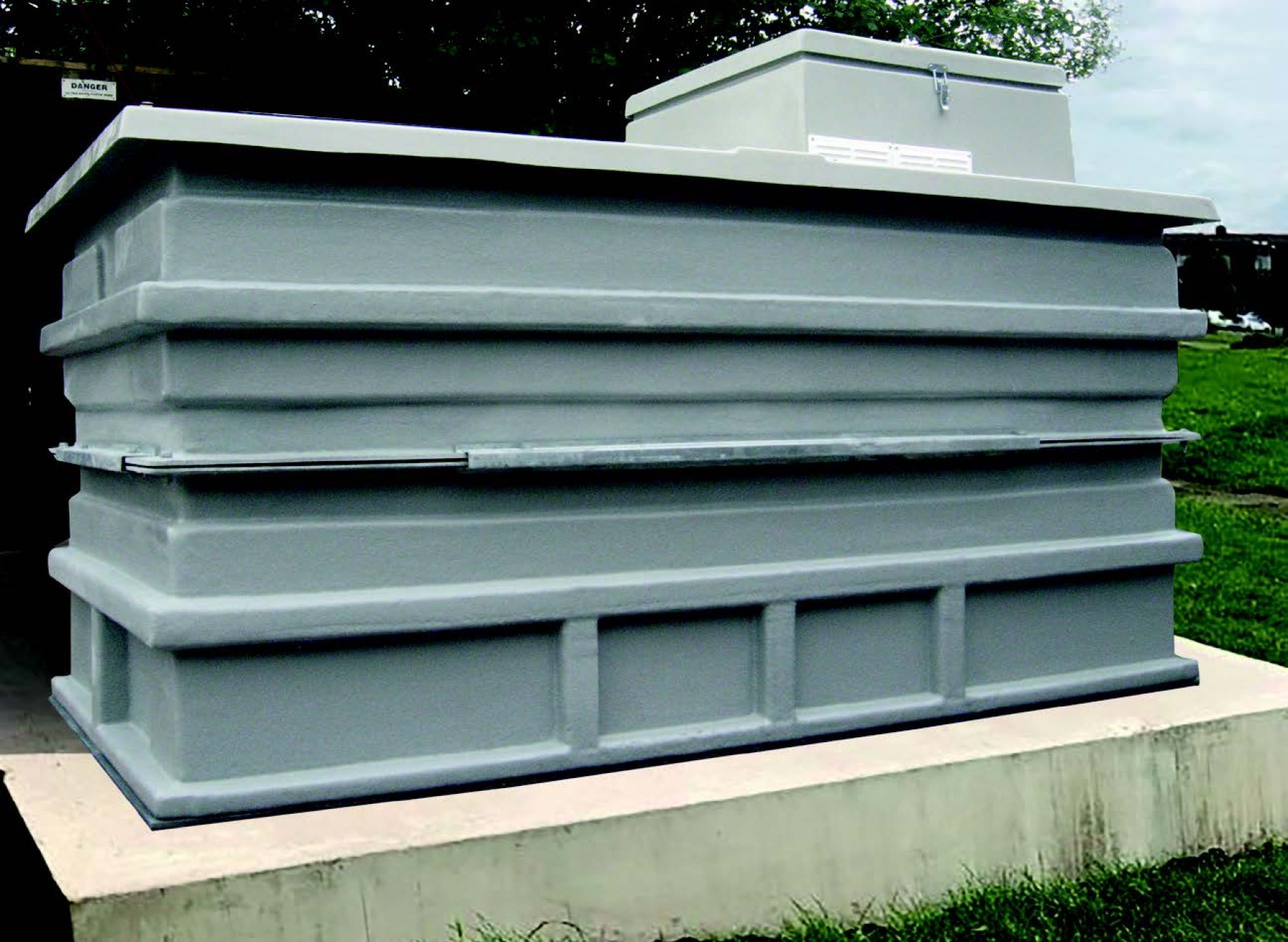

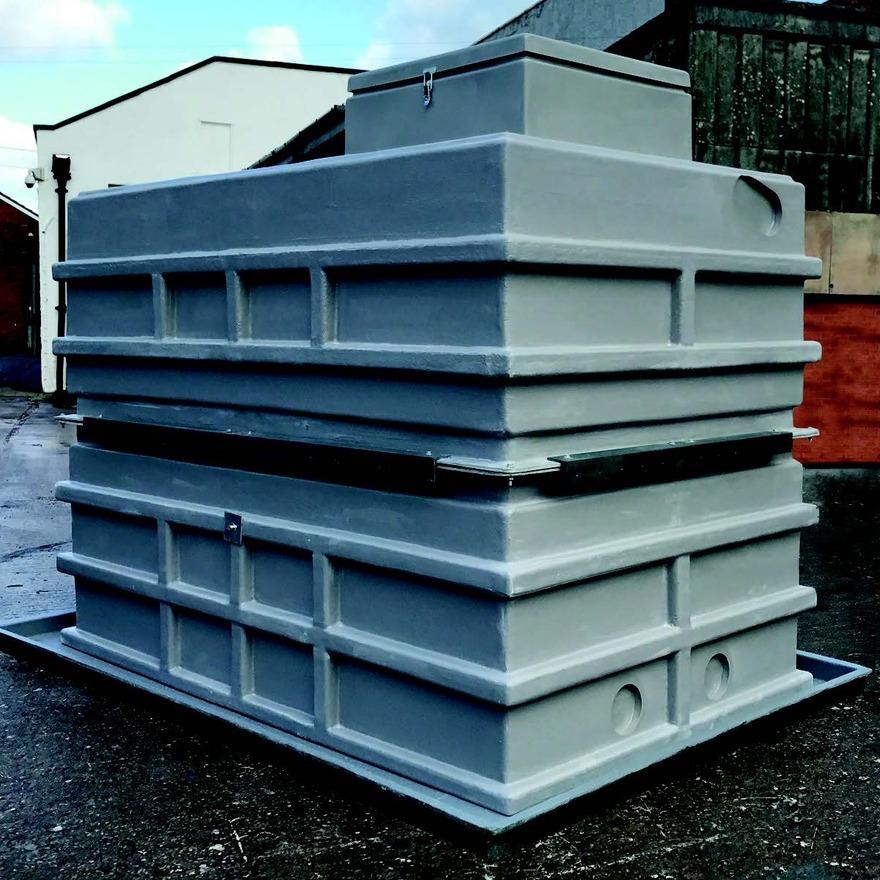

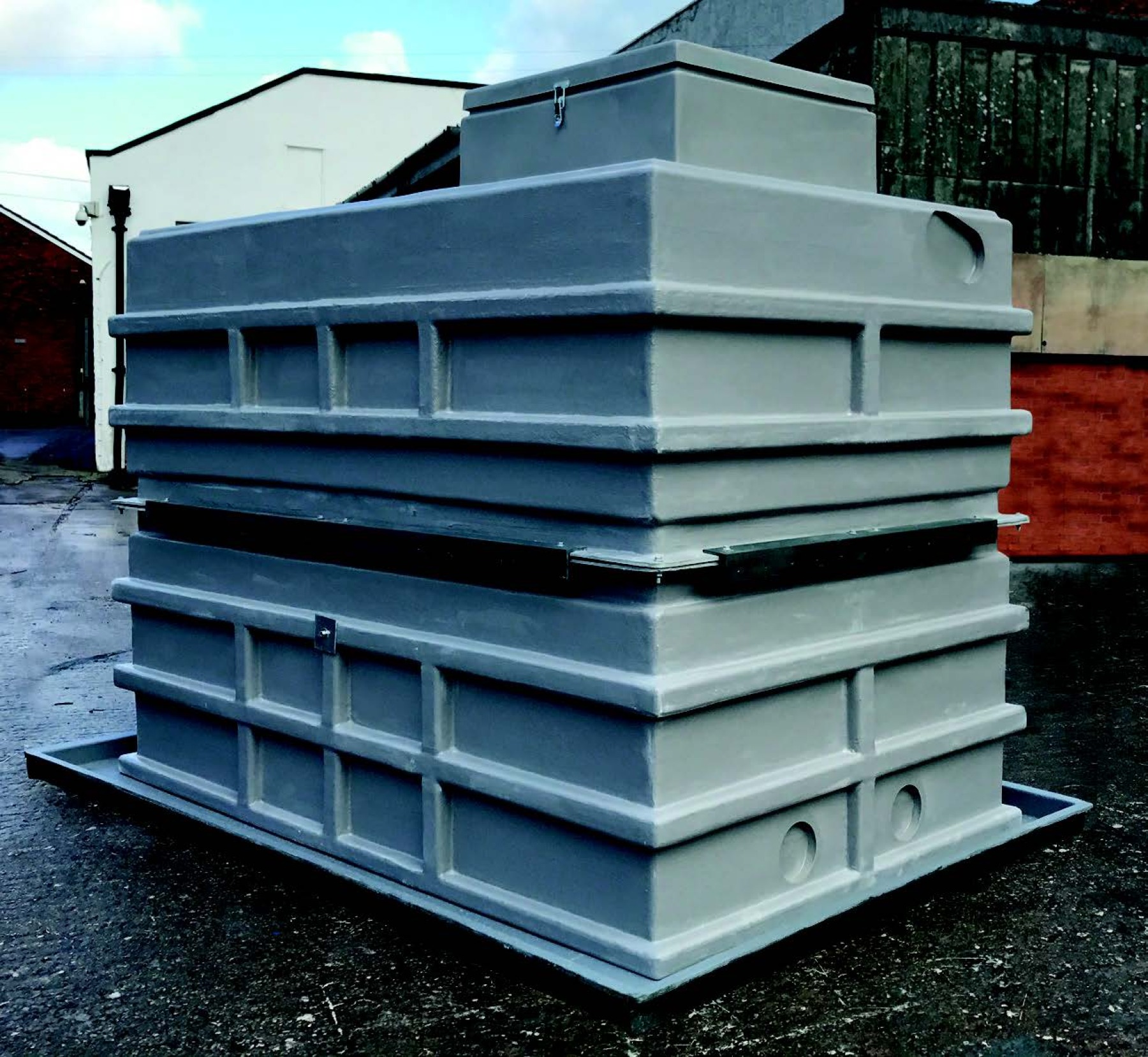

Two-Piece Cold Water Storage Tanks
For installations where access is limited but modular assembly is not required, our two-piece tanks offer the perfect middle ground. Key features include:
- Capacity Range: Up to 15,000 litres.
- Split Design: Easier transportation and access to tight spaces without compromising on strength or performance.
- Reinforced Joints: Durable connectors ensure a leak-free assembly.
- Applications: Suitable for mid-sized properties, including hotels, healthcare facilities, and offices.
